Type

Items

Description

PC

CPU

Intel® Haswell-U I5-4300U/1.9GHz Dual Core CPU

Chipsets

Intel®Haswell-U/Broadwell-U SOC

Cache

3M L3 Cache

Ram

Support 1600/1333MHz DDR3L/1.35V内存，Max 8GB

SSD

1x Msata

HDD

1x SATA 2.5”

LAN

2* RTL8111EGigabit Ethernet,

Support network wake-up /pxe function

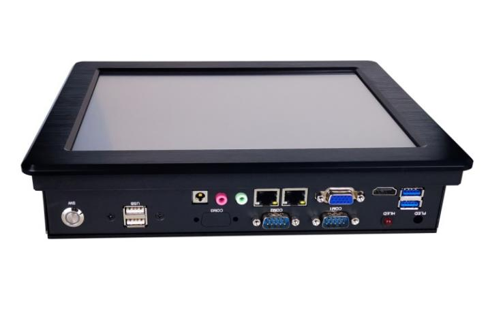

I/O

2x Serial Port：RS-232 x 2;

1x VGA Port

Line out /MIC in

HDMI x1, USB 2.0 x2, USB3.0 x2

Bus extension

1 x Msata Slot

1 x MINI PCIe Slot

Front panel protection

Meet Standard: IP65/NEMA 4

Weight

3.5kg

Size(W x H x D)

264 x 211 x 66 mm

Software

Windows 7，10

Power Supply

12V, DC in

LCD

Type

10.4" ColourTFT LCD

Resolution

1024 x768

Maximum color /Grayscale

262 K

Pixel spacing(mm)

0.240 x 0.240

viewing angle

160°/160°

brightness(cd/m2)

350

Brightness support

Yes (Through BIOS)

LCD MTBF

50,000 hrs

Touch Panel Option

Type

Resistive

Resolution

Continuity

Light conduction

80%

Controller

USB Port

Durability

(number of touches)

35 million

Using Condition

Working Temp

0-60° C ;

Relative humidity

10~ 95 % @ 40°C, Non-condensing

Impact

10GPeak acceleration（11Milliseconds, interval）

Vibration

1 G

EMC

CE, FCC Class B, BSMI
