Model Name

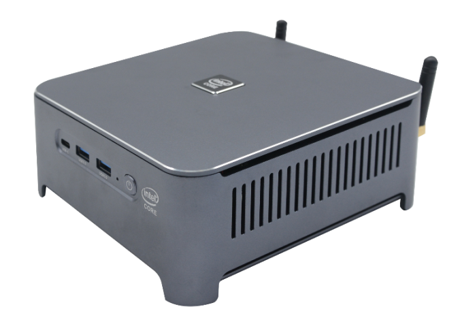

CF09H

CPU

Intel® Coffee Lake/Comet Lake

Memory

2 x SO-DIMM slot ,support DDR4

Maximum support 8GB

Storage

1 x SATA 7Pin 3.0 (6Gb/s) Connector;

1 x Full size M.2 NVME

1 x Full size M.2 SATA/NVME

Expansion Slot

1 x Mini PCIE Connector (Half size WLAN/Bluetooth);

1 x SATA 7Pin 3.0

(6Gb/s) Connector

Front I/O

2 x USB 2.0;

1 x type-c,

1 x Power Led 1 x Power button

Rear I/0

2 x RJ45 10/100/1000Mbps Lan （2*RJ45） 1xHDMI;

1xDP,

2 x USB 2.0;

2 x USB 3 .0;

1 x Audio 1 x 12V DC Jack

OS

Windows 10 / 8 / 7 / Linux

Power supply

AC Adapter 19V/4A 75W DC

Dimensions (mm)

150X145X65
