18.5 "Intel®J1900 2.0GHz Quad Core Solution
18.5 "Intel®J1900 2.0GHz Quad Core Solution
18.5 "Intel®J1900 2.0GHz Quad Core Solution
- Detail
- Parameters
Main Features
• 18.5 "TFT XGA LCD, capacitive touch screen / optional resistive touch screen
• integrated Intel ® J1800 2.41ghz dual core processor
• (optional Intel j1900/i3-3217u/i3-4120u/i5-4300u/i5-6360u/i5-8265u/i7-8565u CPU)
• supports up to 8GB 1600/1333mhz DDR3 memory
• supports a built-in SATA 2.5 "hard disk /msata
• support 1* rtl8111h network interface
• DC 12V
Specifications
Type | Items | Description |
PC | CPU | Intel®J1900 2.0GHz Quad Core CPU |
Chipsets | Base on Intel® Baytrail | |
Cache | 2M L2 Cache | |
Ram | Support 1600/1333MHz DDR3L/1.35V Ram，Max 8GB | |
SSD | 1x Msata | |
HDD | 1x SATA 2.5” | |
LAN | 1*RTL8111EGigabit Ethernet, Support network wake-up /pxe function | |

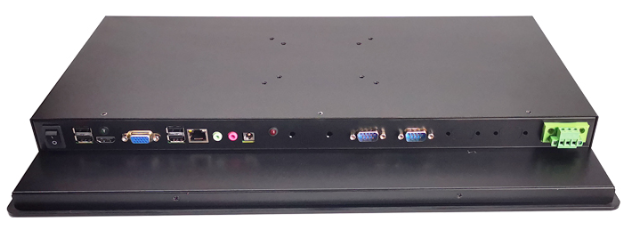

I/O | 2x Serial Port：RS-232 x 2; | |
1x VGA Port | ||
Line out /MIC in | ||
HDMI x1, USB 2.0 x3, USB3.0 x1 | ||
Bus extension | 1 x Msata Slot | |
1 x MINI PCIe Slot | ||
Front panel protection | Meet Standard:IP65/NEMA 4 | |
Weight | 6kg | |
Size(W x H x D) | 476 x 300 x 50.3 mm | |
Software | Windows 7/8 | |
Power Supply | 12 VDC | |
LCD | Type | 18.5" Colour TFT LCD |
Resolution | 1920 x 1080 | |
Maximum color /Grayscale | 16.7M,72% NTSC | |
contrast ratio | 1000：1 | |
Viewing angle | 160°/160° | |
Brightness(cd/m2) | 350 | |
Brightness support | Yes (Through BIOS) | |
LCD MTBF | 50,000 hrs | |
Touch Panel Option | Type | Resistive |
Resolution | Continuity | |
Light conduction | 80% | |
Controller | USB Port | |
Durability (number of touches) | 35 million | |
Using Condition | Working Temp | 0-60° C ; |
Relative humidity | 10~ 95 % @ 40°C, Non-condensing | |
Impact | 10GPeak acceleration（11Milliseconds, interval） | |
Vibration | 1 G | |
EMC | CE, FCC |
