Name:

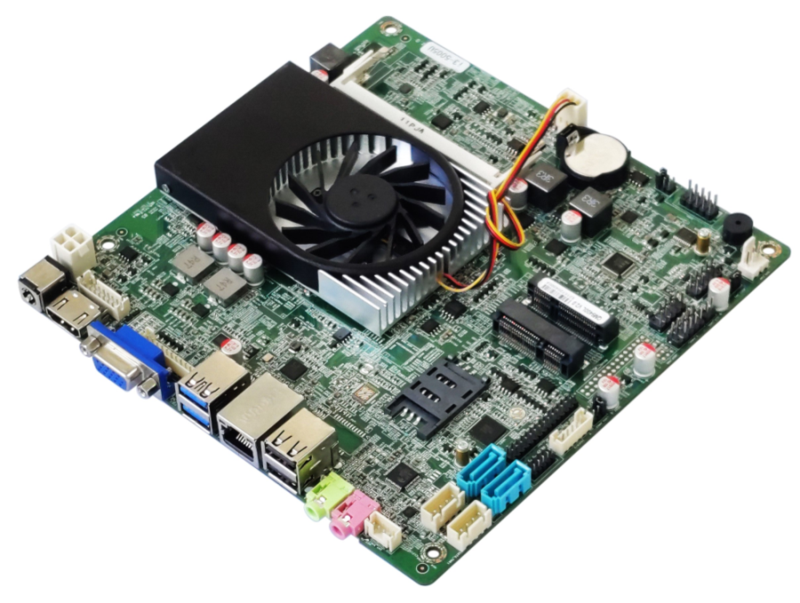

QM9400L

Size

170mm（L）*170mm（W）*20mm（H）

CPU

QM9400L

Support Intel Gen4th Embedded CPU：I3-4010U、I5-4200U、I7-4500U etc

QM9500L

Supported Intel Gen5th Embedded CPU：I3-5010U、I5-5200U、I7-5500U etc

Chipset

Haswell-U、Broadwell-U High speed chipset

Memory

1*NB-DDR3 SODIMM Memory Slot，Support Ram by 1600MHz，1.35V，Max support 8GB

Power

1*DC_IN

Support 12V voltage, DC head inner diameter is 2.5MM

1*DC_ATX

The full load power consumption of the motherboard is about 40W. 12V5A or above power supply is recommended

Display

QM9400L

Intel HD Graphics 4400 Graphics Controller

Support single display, dual display copy, dual display extension, and single display under DOS

QM9500L

Intel HD Graphics 5500 Graphics Controller

1*VGA DB15 Port

Max resolution support: 1920 * 1200@60HZ

1*VGA_OUT

Max resolution support: 1920 * 1200@60HZ               （12Pin，1*12Pin，2.0mm）

1*HDMI 1.4 Port

Max resolution support: 4096/3840 * 2160@30HZ

1*HDMI_CON

Max resolution support: 4096/3840 * 2160@30HZ      （16Pin，2*8Pin，2.0mm）

1*LVDS

Max resolution support: 1920 * 1080@60Hz                （30Pin，2*15Pin，2.0mm）

1*INVERT

LVDS Backlight switch control pin                             （6Pin，1*6Pin，2.0mm）

1*LVDS_PWR

LVDS Working voltage control pin                            （6Pin，2*3Pin，2.0mm）

Ethernet

1/2*RJ45 LAN Port

The optional RTL8111F gigabit/RTL8105E 100M network card chip supports network wake-up and PXE diskless startup functions.

1*Mini-PCIE Port

Support WIFI

Storage

1*SATA1 Port

Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps

1*SATA2 Port

Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps

1*MSATA Port

Support MSATA Disk

1*SATA_PWR1

The hard disk power supply pin can be powered by 5V or 12V.             （4Pin，1*4Pin，2.54mm）

1*SATA_PWR2

The hard disk power supply pin can be powered by 5V or 12V.             （4Pin，1*4Pin，2.54mm）

Audio

Integrated Cmedia HS-100B High fidelity USB audio chip

1*LIN_OUT Port

Support audio output (green)

1*MIC_IN Port

Support microphone input (red)

1*INT_SPK

Speaker: 8-ohm 5-watt horn dual channel output                    （4Pin，1*4Pin，2.0mm）

USB

2*USB3.0

Rear standard USB 3.0 interface

2*USB2.0

Rear standard USB2.0 interface

1*F_USB3

Front USB2.0 pin, one group has 2 * USB2.0              （9Pin，2*5Pin，2.54mm）

F_ USB3 pin 2/4/6/8 default no signal

1*F_USB4

Front USB2.0 pin, one group has 2 * USB2.0              （9Pin，2*5Pin，2.54mm）

Switch

1*F_PANEL

Switch, power light, hard disk light, restart pin         （9Pin，2*5Pin，2.54mm）

1*AUTO_SW

Hardware control power on pin                             （3Pin，1*3Pin，2.0mm）

Pin Expansion

1*COM1

Serial port, only RS232 is supported                       （9Pin，2*5Pin，2.54mm）

1*JCOM1

Control COM1 pin 9 voltage 0V/5V/12V optional          （6Pin，2*3Pin，2.0mm）

1*SIM_CARD

Support SIM card, SIM card is required when using 3G/4G

1*CLR_CMOS

Mainboard reset, discharge pin                               （2Pin，1*2Pin，2.54mm）

1*SYS_FAN

System fan pin, full speed, does not support temperature control        （3Pin，1*3Pin，2.54mm）

1*CPU_FAN

CPU fan pin, supporting temperature control                          （3Pin，1*3Pin，2.54mm）

1*J_GPIO

Standard GPIO pin                                   （10Pin，2*5Pin，2.0mm）

Environment

working temperature：-20℃~60℃；      Operating humidity：5%~95% Relative humidity, non condensing

BIOS

AMI BIOS, supports power on and power on, timed power on,

and intelligent identification of remote power on/off devices

Watch Dog

Watchdog programming, supporting hardware reset function (256 levels, 0-255 seconds)

OS

Support Windows 10，Windows 8，Windows 7，Linux etc
