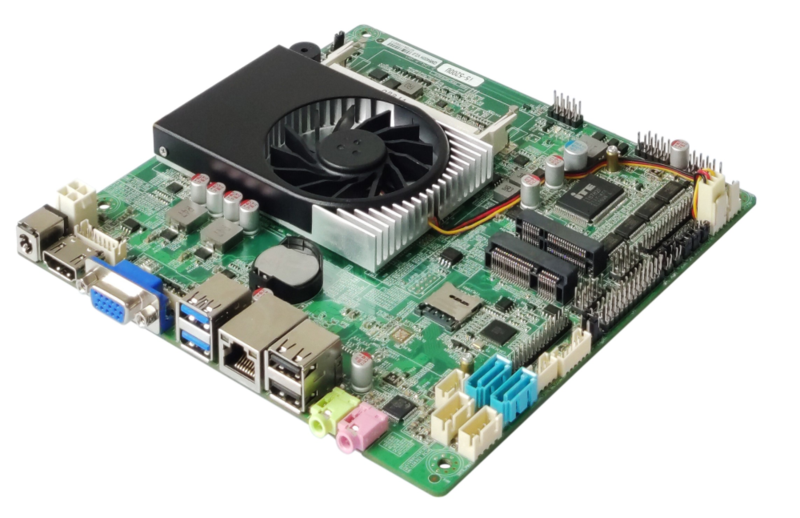

QM9400
QM9400
QM9400
- Detail
- Parameters
Name | QM9400 | |
Size | 170mm（L）*170mm（W）*20mm（H） | |
CPU | QM9400: Support Intel Gen4th Embedded CPU：I3-4010U、I5-4200U、I7-4500U etc | |
QM9500: Support Intel Gen5th Embedded CPU：I3-5010U、I5-5200U、I7-5500U etc | ||
Chipset | Haswell-U、Broadwell-UHigh speed chipset | |
Memory | 1*NB-DDR3 SODIMM Memory Slot，Support Ram by 1600MHz，1.35V，Max support 8GB | |
Power | 1*DC_IN | Support 12V voltage, DC head inner diameter is 2.5MM |
1*DC_ATX | The full load power consumption of the motherboard is about 40W. 12V5A or above power supply is recommended | |
Display | Intel® Gen4th Integrated HD4400 Graphics Controller， Support single display, dual display copy, dual display extension, and single display under DOS | |
Intel® Gen5th Integrated HD5500 Graphics Controller， Support single display, dual display copy, dual display extension, and single display under DOS | ||
1*VGA DB15 Port | Max resolution support 1920*1080@60HZ | |
1*VGA_OUT | Max resolution support 1920*1080@60HZ （12Pin，1*12Pin，2.0mm） | |
1*HDMI 1.4 Port | Max resolution support 4096/3840*2160@30HZ | |
1*HDMI_CON | Max resolution support 4096/3840*2160@30HZ（16Pin，2*8Pin，2.0mm） | |
1*LVDS | Max resolution support 1920*1080@60HZ （30Pin，2*15Pin，2.0mm） | |
1*VCC_SEL | LVDS Voltage control pin （6Pin，2*3Pin，2.0mm） | |
1*INVERT | LVDS Backlight switch control pin （6Pin，1*6Pin，2.0mm） | |
1*BKLT_CTRL | LVDS Backlight brightness adjustment pin （4Pin，1*4Pin，2.0mm） | |
Ethernet | 1*RJ45 LAN Port | RTL8111F gigabit network card chip supports network wake-up and PXE diskless startup functions. |
1*Mini-PCIE Port | Support WIFI/3G/4G | |
Storage | 1*MSATA Port | Support MSATA |
2*SATA Port | Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps | |
2*SATA_PWR | The hard disk power supply pin can be powered by 5V or 12V.（4Pin，1*4Pin，2.54mm） | |
Audio | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high fidelity audio controller | |
1*LIN_OUT Port | Support audio output (green) | |
1*MIC_IN Port | Support microphone input (red) | |
1*INT_SPK | Speaker: 8-ohm 5-watt horn dual channel output （4Pin，1*4Pin，2.0mm） | |
1*F_AUDIO | Standard audio pin （9Pin，2*5Pin，2.54mm） | |
USB | 2*USB3.0 Port | Rear standard USB 3.0 interface |
2*USB2.0 Port | Rear standard USB 2.0 interface | |
1*F_USB2 | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm） | |
1*F_USB3 | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm） | |
Switch | 1*F_PANEL | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW | Hardware control power on pin （3Pin，1*3Pin，2.0mm） | |
Pin Expansion | 1*COM1 | Serial port, only RS232 is supported （9Pin，2*5Pin，2.54mm） |
1*COM2 | Serial port，COM2 support RS232/RS422/RS485 for Option （9Pin，2*5Pin，2.54mm） | |
1*JCOM1 | Control COM1 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm） | |
1*JCOM2 | Control COM2 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm） | |
JP9/JP10/JP11 | COM2 supports RS422 and RS485 signal jumper settings （6Pin，2*3Pin，2.0mm） | |
COM3~COM6 | Serial port, supporting standard RS232; （39Pin，2*20Pin，2.0mm） | |
1*MINI_PCIE | Support WIFI/3G/4G/GPS/Bluetooth module, etc | |
1*SIM_CARD | Support SIM card, SIM card is required when using 3G/4G | |
1*CLR_CMOS | Mainboard reset, discharge pin （2Pin，1*2Pin，2.54mm） | |
1*J_GPIO | Standard GPIO pin （10Pin，2*5Pin，2.0mm） | |
1*SYS_FAN | System fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm） | |
1*CPU_FAN | CPU fan pin, supporting temperature control （3Pin，1*3Pin，2.54mm） | |
Environment | working temperature：-20℃~60℃； Operating humidity：5%~95% Relative humidity, non condensing | |
BIOS | AMI BIOS, supports power on and power on, timed power on, and intelligent identification of remote power on/off devices | |
Watch Dog | Watchdog programming, supporting hardware reset function (256 levels, 0-255 seconds) | |
OS | Support Windows 10，Windows 8，Windows 7，Linux etc | |
