Name

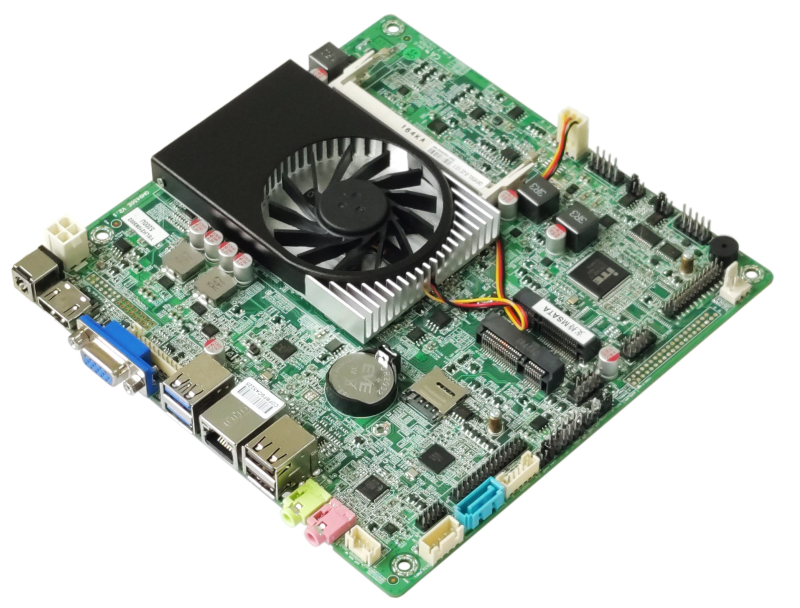

QM9450E-L

Size

170mm（L）*170mm（W）*20mm（H）

CPU

QM9450E

/QM9450L

Support Intel Gen4th Embedded CPU：I3-4010U、I5-4200U、I7-4500U etc

QM9550E

/QM9550L

Support Intel Gen5th Embedded CPU：I3-5010U、I5-5200U、I7-5500U etc

Chipset

Haswell-U、Broadwell-UHigh speed chipset

Memory

1*NB-DDR3 SODIMM Memory Slot，Support Ram by 1600MHz，1.35V，Max support 8GB

Power

1*DC_IN

Support 12V voltage, DC head inner diameter is 2.5MM

1*DC_ATX

The full load power consumption of the motherboard is about 40W. 12V5A or above power supply is recommended

Display

Gen4th

Intel HD Graphics 4400Graphics Controller

Support single display, dual display copy, dual display extension, and single display under DOS

Gen5th

Intel HD Graphics 5500Graphics Controller

Support single display, dual display copy, dual display extension, and single display under DOS

1*VGA DB15 Port

Max resolution support 1920 * 1080@60HZ

1*VGA_OUT

Max resolution support 1920 * 1080@60HZ                  （12Pin，1*12Pin，2.0mm）

1*HDMI 1.4 Port

Max resolution support 4096/3840 * 2160@30HZ

1*EDP2

Max resolution support 4096/3840 * 2160@60HZ         （30Pin，2*15Pin，2.0mm）

Either EDP2 pin or HDMI interface

1*EDP1

Max resolution support 4096/3840 * 2160@60HZ         （30Pin，2*15Pin，2.0mm）

1*LVDS

Max resolution support 1920 * 1080@60Hz                   （30Pin，2*15Pin，2.0mm）

Either EDP1 pin or LVDS pin

1*INVERT

LVDS Backlight switch control pin                                （6Pin，1*6Pin，2.0mm）

1*LVDS_PWR2

LVDS/EDP1: Working Voltage control pin                   （6Pin，2*3Pin，2.0mm）

Ethernet

1/2*RJ45 LAN Port

Single network Realtek 8111F gigabit network card, dual network 8111F+8111H gigabit network card

Support network wake-up and PXE diskless startup.

1*Mini-PCIE Port

Support WIFI, 4G/Bluetooth module can be modified

Storage

1*SATA1 Port

Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps

1*MSATA Port

Support MSATA disk

1*SATA_PWR1

The hard disk power supply pin can be powered by 5V or 12V.   （4Pin，1*4Pin，2.54mm）

Audio

Integrated Cmedia HS-100B High fidelity USB audio chip

1*LIN_OUT Port

Support audio output (green)

1*MIC_IN Port

Support microphone input (red)

1*INT_SPK

Speaker: 8-ohm 5-watt horn dual channel output        （4Pin，1*4Pin，2.0mm）

USB

2*USB3.0 Port

Rear standard USB 3.0 interface

2*USB2.0 Port

Rear standard USB 2.0 interface

1*F_USB3

Front USB2.0 pin, one group has 2 * USB2.0                 （9Pin，2*5Pin，2.54mm）

1*F_USB4

Front USB2.0 pin, one group has 2 * USB2.0                （9Pin，2*5Pin，2.54mm）

Default F_ There is no signal on pin 2/4/6/8 of USB3, and the USB signal with USB sound card is either

Switch

1*F_PANEL

Switch, power light, hard disk light, restart pin             （9Pin，2*5Pin，2.54mm）

1*AUTO_SW

Hardware control power on pin                                      （3Pin，1*3Pin，2.0mm）

Pin Expansion

1*COM1

Serial port, only RS232 is supported                               （9Pin，2*5Pin，2.54mm）

1*COM2

Support RS232/422/485 optional, BIOS setting              （9Pin，2*5Pin，2.54mm）

1*JCOM1

Control COM1 pin 9 voltage 0V/5V/12V optional           （6Pin，2*3Pin，2.0mm）

1*JCOM2

Control COM2 pin 9 voltage 0V/5V/12V optional

  报错 笔记双语对照             （6Pin，2*3Pin，2.0mm）

1*COM3~6

Serial port, supporting standard RS232;                          （39Pin，2*20Pin，2.0mm）

1*JLPT

Parallel port, standard printing port pin                          （25Pin，2*13Pin，2.0mm）

1*SIM_CARD

Support SIM card, SIM card is required when using 3G/4G

1*CLR_CMOS

Mainboard reset, discharge pin                                （2Pin，1*2Pin，2.54mm）

1*SYS_FAN

System fan pin, full speed, does not support temperature control     （3Pin，1*3Pin，2.54mm）

1*CPU_FAN

CPU fan pin, supporting temperature control          （3Pin，1*3Pin，2.54mm）

1*J_GPIO

Standard GPIO pin                                                     （10Pin，2*5Pin，2.0mm）

Environment

working temperature：-10℃~60℃；      Operating humidity：5%~95% Relative humidity, non condensing

BIOS

AMI BIOS, supports power on and power on, timed power on,

and intelligent identification of remote power on/off devices

Watch Dog

Watchdog programming, supporting hardware reset function (256 levels, 0-255 seconds)

OS

Support Windows 10，Windows 8，Windows 7，Linux etc
