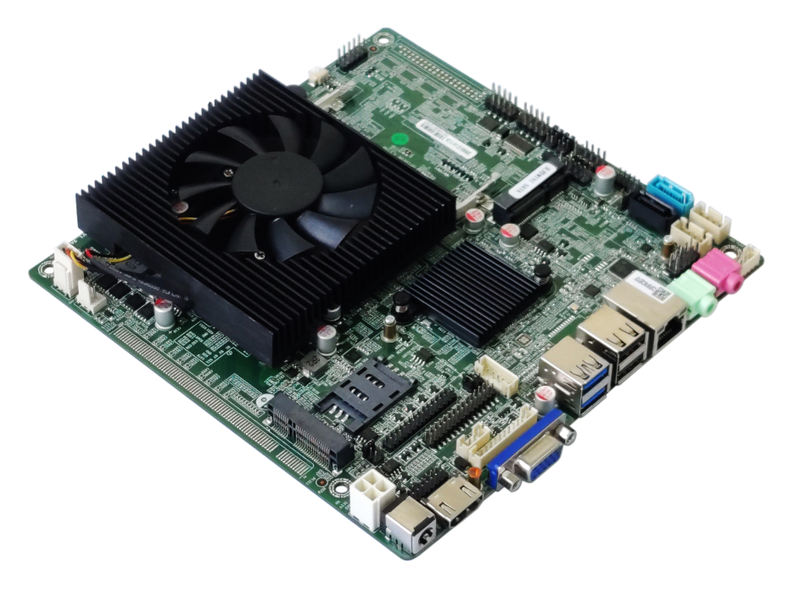

QM8680
QM8680
QM8680
- Detail
- Parameters
Name | QM8680 | |
Size | 170mm（L）*170mm（W）*26mm（H） | |
CPU | Support Intel Mobile Gen4th M Series CPU such as I3、I5、I7 | |
Chipset | Intel® HM86 Series Chipset | |
Memory | 1*NB-DDR3 SODIMM Memory Slot，Support Ram by 1600MHz，1.35V，Max support 8GB | |
Power | 1*DC_IN | Support 12V voltage, DC head inner diameter is 2.5MM |
Mainboard full load power consumption is about 60W, 12V7A or above power supply is recommended | ||
Display | Intel HD Graphics 4600 Graphics Controller， Support single display, dual display copy, dual display extension, and single display under DOS | |
1*VGA DB15 Port | Max resolution support 1920 * 1080@60Hz | |
1*VGA_OUT | Max resolution support 1920 * 1080@60Hz （12Pin，1*12Pin，2.0mm） | |
1*HDMI 1.4 Port | Max resolution support 4096/3840*2160@30Hz | |
1*HDMI_CON | Max resolution support 4096/3840*2160@30Hz （16Pin，2*8Pin，2.0mm） | |
1*LVDS | Max resolution support 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | |
1*LVDS_PWR | LVDS Working Voltage control pin （6Pin，2*3Pin，2.0mm） | |
1*INVERT | LVDS Backlight control pin （6Pin，1*6Pin，2.0mm） | |
1*BKLT-CTRL1 | LVDS Backlight brightness adjustment pin （4Pin，1*4Pin，2.0mm） | |
1*EDP1 | Max resolution support 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | |
1*EDP-PWR1 | EDP Working voltage control pin （6Pin，2*3Pin，2.0mm） | |
1*PCI-E X16 Port | Standard PCI-E X16 interface, which can be connected to independent video card | |
Ethernet | 1*RJ45 LAN Port | Realtek 8111H gigabit network card chip supports network wake-up and PXE diskless startup functions |
1*Mini-PCIE Port | Support WIFI/3G/4G/Bluetooth module | |
Storage | 1*MSATA Port | Supports MSATA disks and SATA 3.0 |
1*SATA1 Port | Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps | |
1*SATA2 Port | Standard SATA2.0 hard disk interface, maximum transmission speed 6.0 Gbps | |
2*SATA-PWR | The hard disk power supply pin can be powered by 5V or 12V. （4Pin，1*4Pin，2.54mm） | |
Audio | Integrated Cmedia HS-100B high fidelity USB audio chip; Support Realtek 662/892 and other sound card chips | |
1*LIN_OUT Port | Support audio output (green) | |
1*MIC_IN Port | Support microphone input (red) | |
1*INT_SPK | Speaker: 8-ohm 5-watt horn dual channel output （4Pin，1*4Pin，2.0mm） | |
USB | 2*USB3.0 Port | Rear standard USB 3.0 interface |
2*USB2.0 Port | Rear standard USB 2.0 interface | |
1*F_USB1 | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.0mm） | |
1*F_USB2 | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.0mm） | |
Switch | 1*F_PANEL | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW | Hardware control power on pin （3Pin，1*3Pin，2.0mm） | |
Pin Expansion | 1*COM1 | Supports RS422 and RS485 signal jumper settings （9Pin，2*5Pin，2.54mm） |
1*COM2 | Serial port, only RS232 is supported （9Pin，2*5Pin，2.54mm） | |
1*COM3~6 | Serial port, only RS232 is supported （39Pin，2*20Pin，2.0mm） | |
1*JCOM1/2 | COM1/2 pin 9 setting 0V/5V/12V （6Pin，2*3Pin，2.0mm） | |
1*SIM_CARD | Support SIM card, SIM card is required when using 3G/4G | |
1*CLR-CMOS | Mainboard reset, discharge pin （3Pin，1*3Pin，2.0mm） | |
1*FAN1 | System fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm） | |
1*FAN2 | CPU fan pin, supporting temperature control （3Pin，1*3Pin，2.54mm） | |
1*J-GPIO1 | Standard GPIO pin （10Pin，2*5Pin，2.0mm） | |
Environment | working temperature：-20℃~60℃； Operating humidity：5%~95% Relative humidity, non condensing | |
BIOS | AMI BIOS, supports power on and power on, timed power on, and intelligent identification of remote power on/off devices | |
Watch Dog | Watchdog programming, supporting hardware reset function (256 levels, 0-255 seconds) | |
OS | Support Windows 10，Windows 8，Windows 7，Linux etc | |
